Am 2320 (Air Master) For Big Spilt Type Air Conditioner Motor
Technical Details
| Specification | Details |
|---|---|
| Brand | Am 2320 |
| Item Name & Model | Outdoor Split Motor – 1.5 Ton & 2.0 Ton |
| Suitable For | 3.0 Ton & Above |
| Country of Origin | India |
| Net Quantity | 1 Unit |
| Item Weight | 2.0 kg |
| Product Dimensions (L × W × H) | 10 × 6 × 6 inches |
| Material | Iron |
| In the Box | 1 Outdoor Motor |
| Included Components | Capacitor |
| Packer | SM Air Condition Work |
| Speed | 900 RPM |
| Power Consumption | 167 Watt |
| Rotation Direction | Anti Clockwise (CCW) |
| Capacitor Rating | 3 MFD |

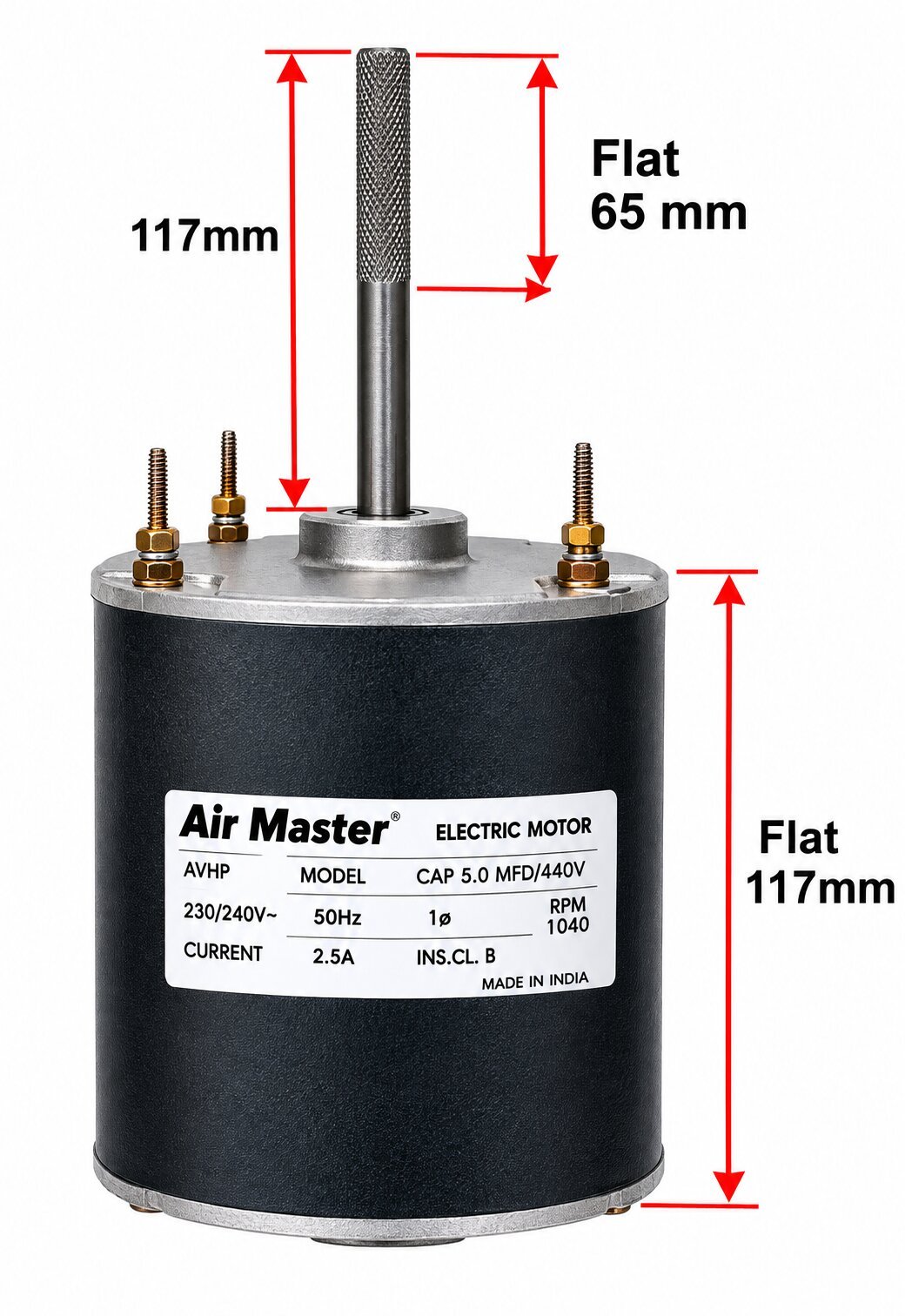

| Shaft Extension (Fan Side) | 117 mm |
| Flat Size (Fan Side) | 65 mm |
| Hp | 1/4 |
| Warranty | 1-Year Replacement Warranty from the Billing Date, provided by the Souneeds |
| Product Type | Electronic Components |
Product Description
The AM 2320 Outdoor Split Motor is a replacement motor designed for compatible air conditioner outdoor units. It operates at 900 RPM, consumes 167 watts of power, and features anti-clockwise (CCW) rotation. The motor includes a 3 MFD capacitor and has a 1/4 HP rating.
The motor is listed as suitable for 3.0 Ton AC units and above, subject to exact model and specification compatibility. Please verify the stated capacity suitability against your existing AC motor before ordering.
Before purchasing, compare the motor’s speed, wattage, horsepower, capacitor rating, rotation direction, shaft dimensions, and mounting arrangement with your existing motor.
Genuine Spare Parts
Choose the correct replacement part for your electrical equipment by checking the product specifications and compatibility before purchasing. Souneeds will verify product authenticity against the supplier’s documentation.
Compatibility & Installation
Before ordering, confirm compatibility with your existing AC outdoor unit. Check the RPM, power consumption, horsepower, capacitor rating, rotation direction, shaft extension, flat size, and mounting arrangement.
Professional installation by a qualified & Souneeds technician is recommended. Disconnect the electrical supply before servicing or replacing the motor. Capacitors can retain a dangerous electrical charge even after the power is disconnected, so installation and replacement should be performed by a qualified technician.
Need Help Finding the Right Part?
Contact our Souneeds WhatsApp helpline: 8448822322
Get assistance with:
- AC motor compatibility and model verification
- Confirmation of technical specifications
- Shaft dimensions and rotation direction
- Installation-related queries
- Help choosing the correct replacement motor
